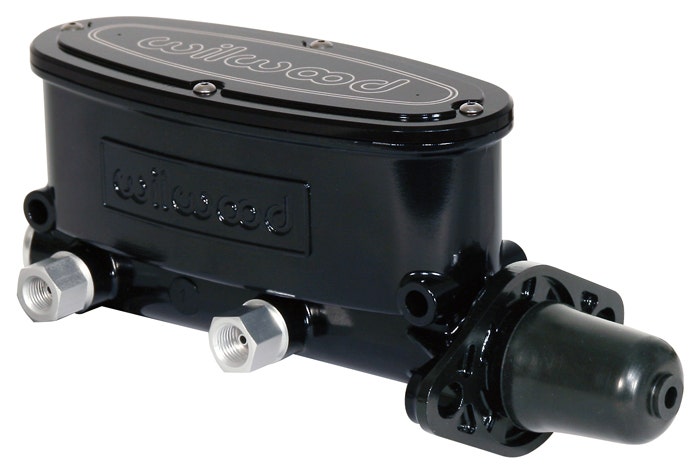

Wilwood Brakes - Wilwood Master Cylinder, Tandem, 1 in Bore, 1.100 in Stroke, Integral Reservoir, Aluminum, Black Paint, Kit (260-8555-BK)

Wilwood’s Tandem Aluminum Master Cylinder is available in 3 bore sizes, 7/8 Inch , 1 Inch and 1.125 Inch; and 3 finishes, plain, ball burnished and black e-coat. 7/8 Inch bore master cylinders are designed primarily for manual applications and include a pushrod. The 1 Inch bore can be used in manual and power assisted applications and does not come with a pushrod. The 1.125 Inch bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They’re designed for mount flanges from 3.22 Inch to 3.40 Inch, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10 Inch with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75 percent weight savings over most cast iron OE type master cylinders. We also offer a our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders
