Details

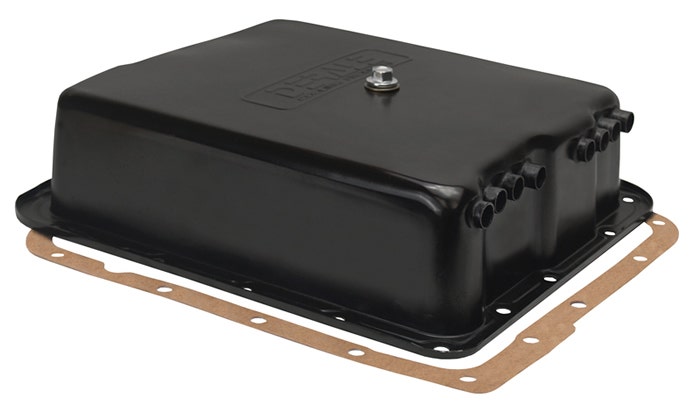

Auto Trans Oil Pan
Transmission Cooling Pan; 3-5/8 in. Pan Depth; 2-1/2 in. Tube Depth; 1/8 NPT Temp Bung Size;
FEATURES:
- Heavy Gauge Stamped Steel Construction
- Two Stage Heat Dissipating Black Finish
- 1/8 in. NPT Temperature Sender Port
- Reduces Fluid Temperatures Up To 50 Degrees Fahrenheit
- Increases Fluid Capacity By 2 qts. 4 oz.
- Patented Turbulator Cooling Tubes Add Heat Transfer Capability
- Magnetic Drain Plug With Increased Magnetic Strength And Rubber/Steel Washer
- 3-5/8 in. Pan Depth
Derale's Transmission Cooling Pan #14204 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's popular 700R4/4L60 & 4L60E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.
Derale Performance
More Information
| SKU | BDST14204 |
|---|---|
| UPC | 00083277142048 |
| Color | Black |
| ASIN | B004XONSSK |
| Brand | Derale |
| Part Type | Auto Trans Oil Pan |
| MPN | 14204 |
| Weight | 8.940000 |
| Length | 19.390 |
| Height | 6.750 |
| Width | 14.020 |
Fitment Compatibility
